We have a highly efficient team to deal with inquiries from customers. Our goal is "100% customer satisfaction by our product quality, price & our team service" and enjoy a good reputation among clients. With many factories, we can provide a wide range of Plasma Marking Machine,Plasma Drilling Machine,Square Tube Plasma Cutting Machine. our company imports a large number of foreign advanced devices. Welcome clients from home and abroad to call and inquire!

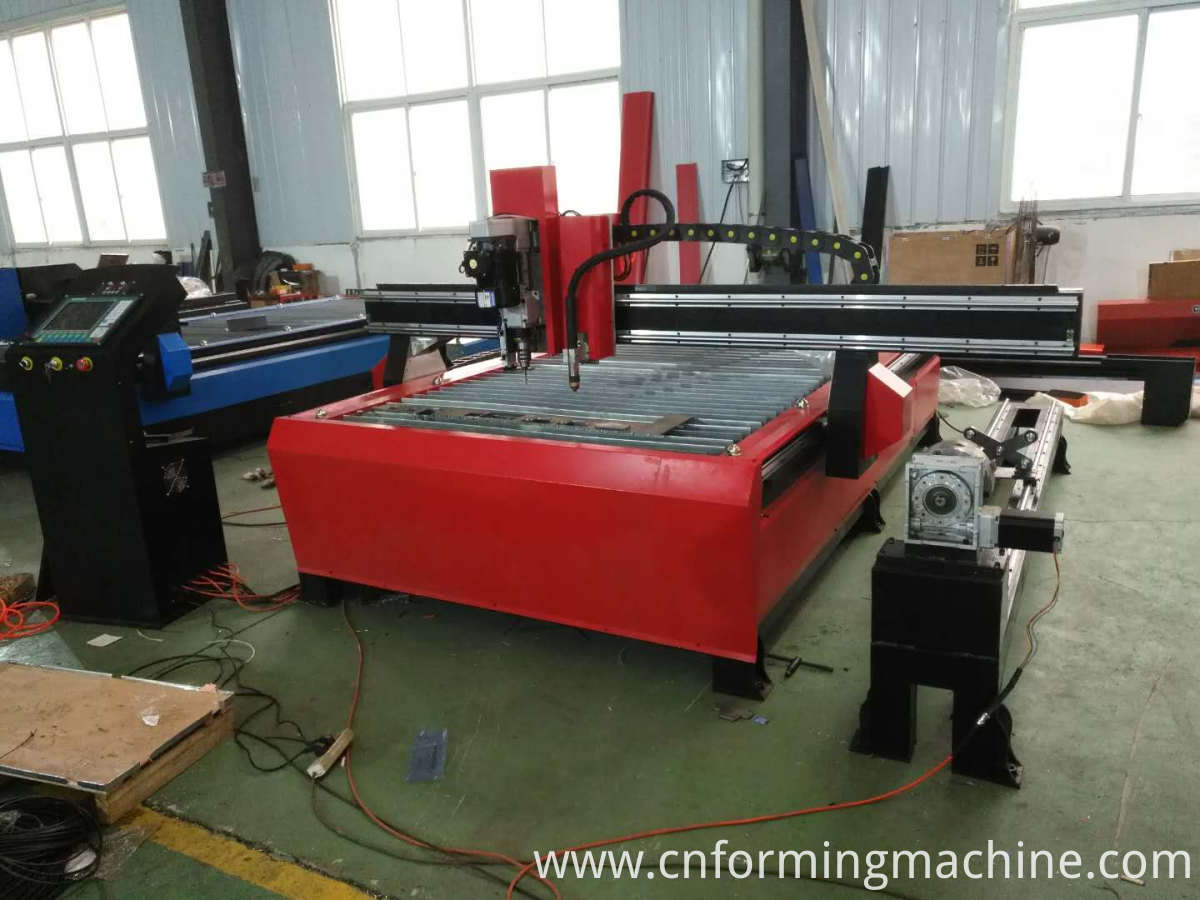

OEM for Sheet Metal Fabrication Pipe Sheet Cutting Drilling Machine supply to Bouvet Island Exporter

Pipe & Sheet Cutting & Drilling machine not only can cut flat sheet , still also can cut  round pipe and square . also can drilling small hole less than 2mm diameter


Janpan Yaskawa servo motor to confirm the following function working precision is more better than step motor , and cutting is more smooth.


1. Pipe cutting :Square pipe &round pipe all can cut . pipe diameter and length can customized regarding customers ' demands.


2.Metal sheet cutting :different thickness need different power source , China HUAYUAN & USA Hypertherm is two popular model power source


3. Drilling :if the hole diameter is too small , drilling function is better choose instead of plasma cutting .2mm-18mm is standard drilling diameter


best plasma table


Main Configuration of CNC CUTTING MACHINES

1.working area:2500*1300mm ,3000*1500mm customized

2.Power source:China HUAYUAN or USA Hypertherm

3.Control system:China STARTFIRE/START/FLMC-F2300A/NC-Studio/USA Hypertherm

4.Automatic Torch height controller:China HYD/USA Hypertherm

5. Nesting software:ARCAM/FASTCAM

6.Drive:Dual drive , Japan Yaskawa servo motor /China Step Motor

7.Taiwan Hinwin Square rail

8.Pipe diameters:100mm,200mm, 300mm,400mm,500mm. customized

9.Drilling diameter:2-18mm

10.Cutting shape:sqaure pipe , round pipe , metal sheet

Main Parameters

Model

HX2513

Working Area

2500*1300mm

Power source

China HUAYUAN/USA Hypertherm

Pipe diameter

100mm,200mm, 300mm,400mm,500mm. customized

Control system

STARTFIRE/START/FLMC-F2300A/NC-Studio

Nesting Software

FASTCAM

Automatic torch height controller

China HYD/On-Time/USA Hypertherm

Motors

Dual Drive

stepper motor

Design Software

Auto Cad

Transmission type

X,Y rack gear,     z ball screw

Working Mode

Untouched Arc Striking

Cutting Speed

0-20m/min

Free Running Speed

0-50m/min

Gross Power

8.5KW-10.5KW

Repeat positioning accuracy

±0.05mm

Process precision

±0.35mm

Working Voltage

Machine: 220V , Single PHASE

Plasma source: 380V , 3 PHASE

File transfer mode

USB interface


Main Parts:

plasma marking machine

Any drawing can mark .


Pipe rotary axis device , all the diameters can be customized

esab plasma cutting machine

USA Hypertherm & China HUAYUAN Power source for your choose .  following cutting parameters for your reference

power source  cutting thickness
USA hypertherm 45A 12mm(1/2")
65A 16mm(5/8")
85A 20mm(3/4")
105A 22mm(7/8")
125A 25mm(1")
China HUAYUAN 63A 6-8mm
100A 15mm
120A 16mm
160A 25mm
200A 35mm
300A 40mm
400A 50mm

cabinet of plasma cutter

CNC Plasma Table Cutting Machine Control system

STARFIRE/START/FLMC-2300A/NC-Studio control system all is ok , Chinese /English /RUSSIAN/Spainsh/French/Czech/Janpanese/Slovakian etc. version for your choose ,so you don't need worry about operate problem regardng language


HYD THC


Automatic torch height controller

with this function , the torch can up and down with automatic regarding the sheet radian , so through your sheet is not flat , you also don't need worry the torch will collide the sheet , then to protect the cutting torch and ensure the cutting performance


Cutting samples of Round Pipe Cutting Machine

>>Applicable industry>>
It be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
>>Applicable material>>
Iron, aluminum, titanium plate, stainless steel plate, galvanized steel, white steel etc.


pipe samples

plasma marking machine


Payment Terms:

T/T, L/C

Delivery time :15-20 days after get deposit

Service:


After-sales

(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.

(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can`t solve your problem , our engineer will go to your factory to help you on spot.

Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.



Guarantee:

2 years for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.

All the service is for machine whole life.


Our Advantage:

6

1 (11)


Customers Feedback about Plasma Metal Cutting Machine

cnc plasma cutting machine
plasma cutters



To regularly increase the management program by virtue from the rule of "sincerely, good religion and high quality are the base of enterprise development", we greatly absorb the essence of linked products internationally, and constantly produce new goods to satisfy the calls for of shoppers for Pipe Sheet Cutting Drilling Machine. The product will supply to all over the world, such as: Paraguay,Kazakhstan,Andorra. Our technical expertise customer-friendly service and specialized goods make us/company name the first choice of customers and vendors. We have been looking for your inquiry. Let's set up the cooperation right now!
