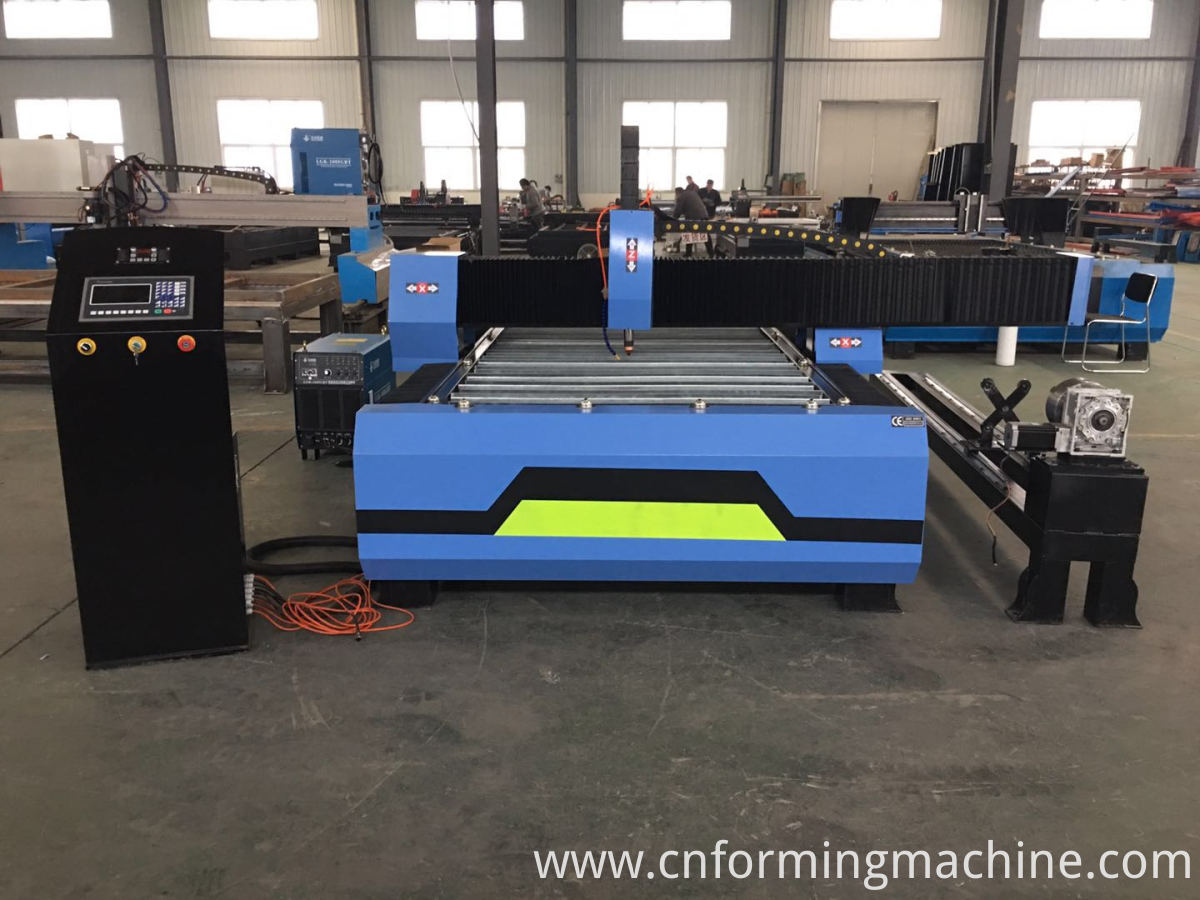

PriceList for Metal Sheet Cutting Machine CNC Plasma Table Cutting Machine supply to Denmark Exporter

Sheet & Pipe Cutting Machine used heavy duty with three axis dust cover to make working more smooth and confirm the cutting performance.


Add dust cover to cover the rail , then to confirmt the clean working environment and ensure cutting precision

Drawer design for choose. open the Drawer to take cutting rubbish and small cutting pieces ,instead of open the cutting table blade every time ,then you can clean machine easily , and then save much time

best cnc plasma table


Main Configuration of Tubes plasma cutting machine

1.working area:2500*1300mm ,3000*1500mm customized

2.Power source:China HUAYUAN or USA Hypertherm

3.Control system:China STARTFIRE/START/FLMC-F2300A/NC-Studio/USA Hypertherm

4.Automatic Torch height controller:China HYD/USA Hypertherm

5. Nesting software:ARCAM/FASTCAM

6.Drive:Dual drive , Japan Yaskawa servo motor /China Step Motor

7.Taiwan Hinwin Square rail

8.Pipe diameters:100mm,200mm, 300mm,400mm,500mm. customized


Main Parameters

Model

HX2513

Working Area

2500*1300mm

Power source

China HUAYUAN/USA Hypertherm

Pipe diameter

100mm,200mm, 300mm,400mm,500mm. customized

Control system

STARTFIRE/START/FLMC-F2300A/NC-Studio

Nesting Software

FASTCAM

Automatic torch height controller

China HYD/On-Time/USA Hypertherm

Motors

Dual Drive

stepper motor

Design Software

Auto Cad

Transmission type

X,Y rack gear,     z ball screw

Working Mode

Untouched Arc Striking

Cutting Speed

0-20m/min

Free Running Speed

0-50m/min

Gross Power

8.5KW-10.5KW

Repeat positioning accuracy

±0.05mm

Process precision

±0.35mm

Working Voltage

Machine: 220V , Single PHASE

Plasma source: 380V , 3 PHASE

File transfer mode

USB interface


Main Parts:

circle cutter for plasma cutter

Pipe rotary axis device , all the diameters can be customized

esab plasma cutting machine

USA Hypertherm & China HUAYUAN Power source for your choose .  following cutting parameters for your reference

power source  cutting thickness
USA hypertherm 45A 12mm(1/2")
65A 16mm(5/8")
85A 20mm(3/4")
105A 22mm(7/8")
125A 25mm(1")
China HUAYUAN 63A 6-8mm
100A 15mm
120A 16mm
160A 25mm
200A 35mm
300A 40mm
400A 50mm

cabinet of plasma cutter

CNC Plasma Table Cutting Machine Control system

STARFIRE/START/FLMC-2300A/NC-Studio control system all is ok , Chinese /English /RUSSIAN/Spainsh/French/Czech/Janpanese/Slovakian etc. version for your choose ,so you don't need worry about operate problem regardng language


HYD THC


Automatic torch height controller

with this function , the torch can up and down with automatic regarding the sheet radian , so through your sheet is not flat , you also don't need worry the torch will collide the sheet , then to protect the cutting torch and ensure the cutting performance


Cutting samples of Round Pipe Cutting Machine

>>Applicable industry>>
It be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
>>Applicable material>>
Iron, aluminum, titanium plate, stainless steel plate, galvanized steel, white steel etc.


pipe samples

cnc plasma cutting machine specification


Payment Terms:

T/T, L/C

Delivery time :15-20 days after get deposit

Service:


After-sales

(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.

(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can`t solve your problem , our engineer will go to your factory to help you on spot.

Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.



Guarantee:

2 years for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.

All the service is for machine whole life.
